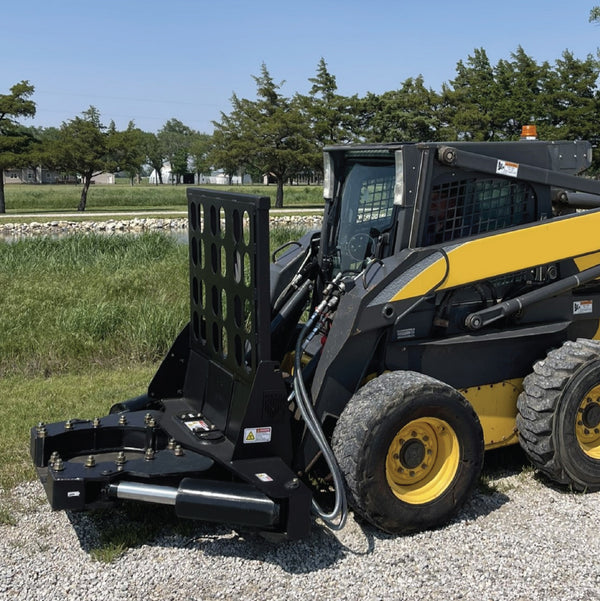

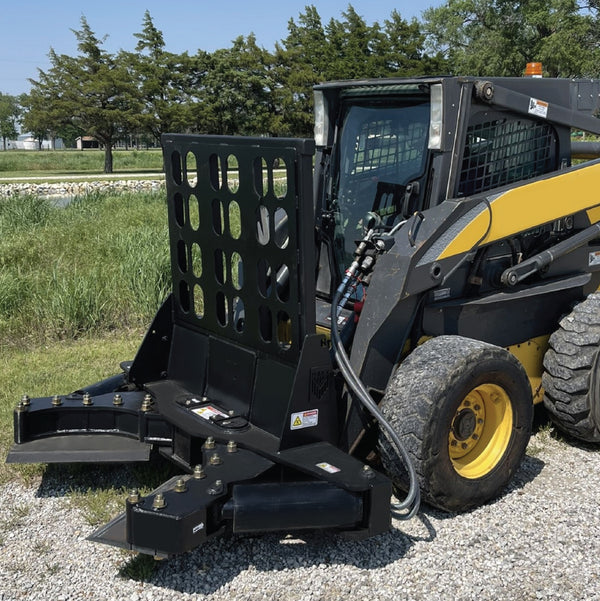

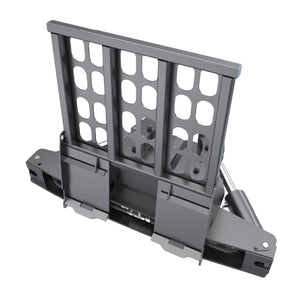

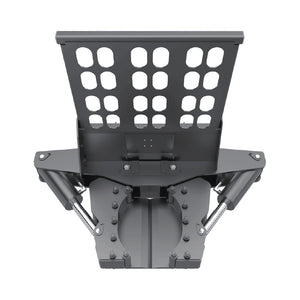

Maxx Attachments 20″ Ranch Axe Tree Shear for Heavy-Duty Skid Steer, AR400 Blade, 20″ Cutting Capacity, Manufactured in USA, MAX-7434D1
20″ Ranch Axe Tree Shear with 1″ AR400 blade, 2,000 lb build, and massive hydraulic shearing cylinder. Standard skid steer couplers. Perfect for pasture clearing and tree removal.
Skid steers with Universal Mount
PRODUCT OVERVIEW -

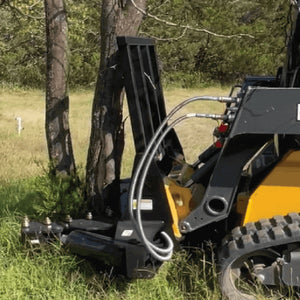

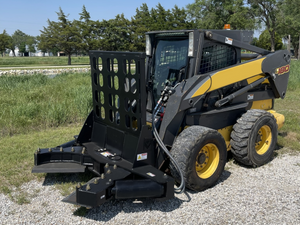

The Maxx Attachments 20″ Ranch Axe Tree Shear is the top-tier solution for aggressive land and pasture clearing operations. Outfitted with a 1″ thick AR400 steel blade and a massive 6″ bore hydraulic cylinder, it delivers exceptional shearing power. With a 2,000 lb reinforced frame and designed to be mounted on skid steers, the Ranch Axe is purpose-built to cut down large moisture-draining trees like cedar and juniper. Every unit is engineered in the USA using proven Maxx durability, ready to provide thousands of hours of field performance.
SPECIFICATIONS +
- Cutting Width: 20″
- Height: 60″
- Width: 82″
- Depth: 45″
- Blade Material: 1″ AR400 Steel, Single-Bevel
- Weight: 2,000 lb (908 kg)
- Cylinder Rod: 3.00″
- Cylinder Bore: 6.00″
- Cylinder Stroke: 12.00″
- Operating Capacity Required: Minimum 2,100 lb
- Hydraulic Flow: Minimum 17 GPM
- Hydraulic Pressure: Maximum 3,000 PSI
- Includes jumper hoses and quick disconnects for standard flow connections
DETAILS +

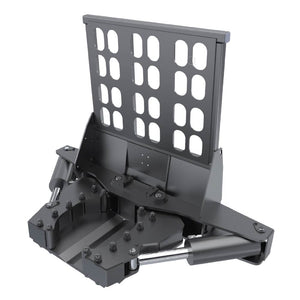

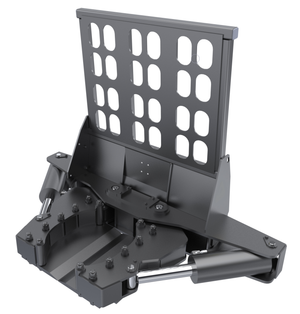

- Heavy-duty design made for high-volume tree shearing in pasture reclamation
- 1″ thick AR400 blade delivers powerful, clean cuts through cedar and juniper

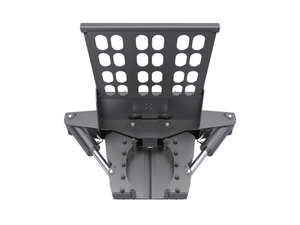

- Maxx hydraulic shear cylinder engineered for strength: 3″ rod, 6″ bore, 12″ stroke
SHIPPING INFO +
- Ships from Maxx Attachments' headquarters in Kansas, USA. Orders are typically processed in 3–5 business days with delivery in 3–5 weeks depending on location and accessibility.
- Product Weight: approx. 2200 lb (998 kg)
- Transport Dimensions (L x W x H): approx. 52” x 88” x 67” (1.32 m x 2.24 m x 1.70 m)
